The Screen

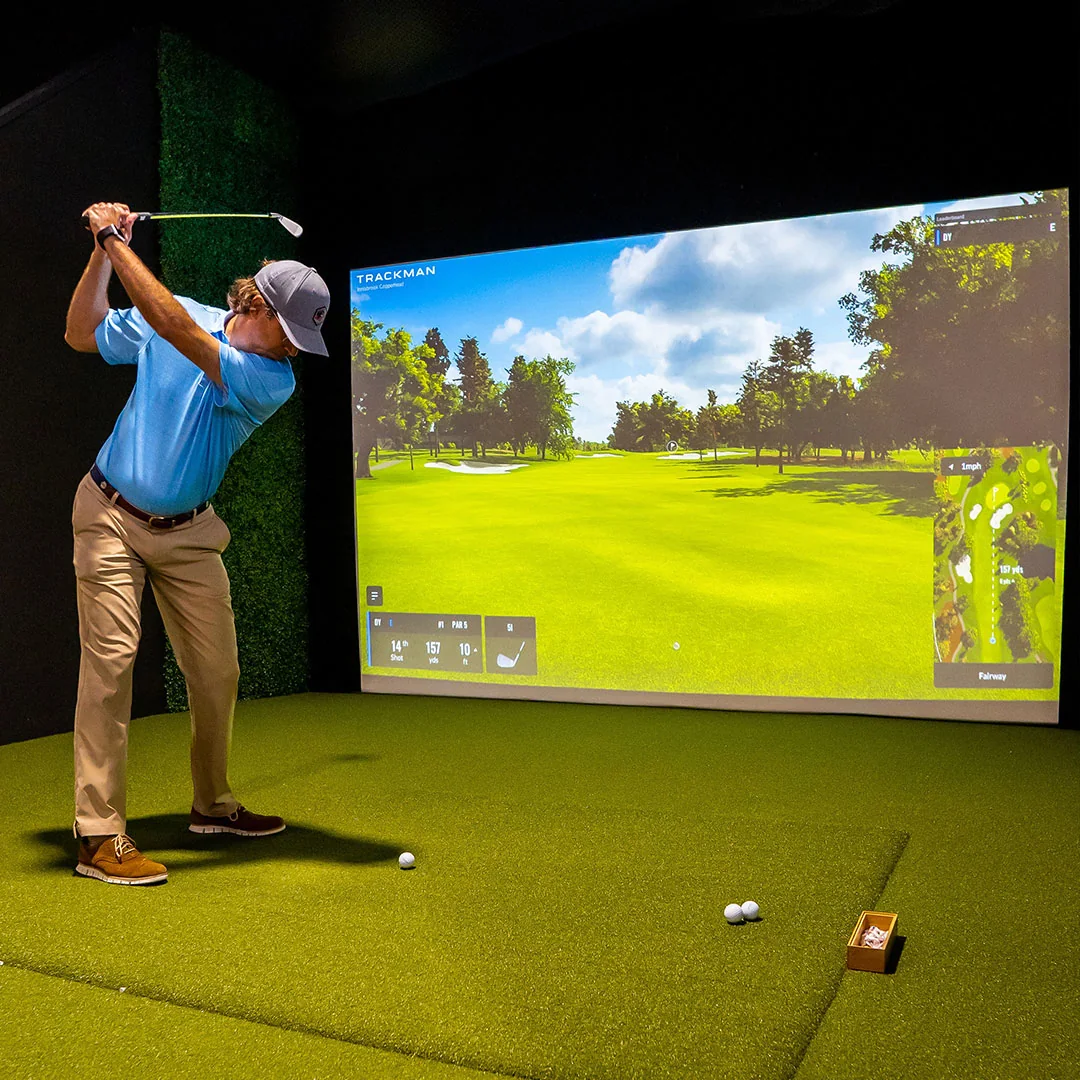

The Screenshot Golf impact screen is a retractable, motorized golf simulator screen custom-built to your opening or wall and professionally installed. It uses a 1/8-inch dyed-white warp knit fabric engineered for projection clarity and sound absorption.
How does a retractable golf impact screen work?
The screen deploys from a roller tube at the push of a button and rolls up neatly when play is done. A motor drives the tube, side tracks hold the fabric flat and square, and a single-channel remote controls it.
It is an electric, fully automatic screen. The motor is a UL-listed 110-volt plug-in unit with obstacle detection, so the screen stops if something is in its path. A wireless wall switch, app control, and multi-channel controllers are available if you want the screen on the same system as the rest of the room.
What is the screen made of?
The screen is a dyed-white warp knit at 1/8 inch thick. The thickness absorbs sound and cuts the echo that makes a garage simulator sound like a garage. The dyed-white finish holds a clean projection surface with a sharper image and fewer hot spots.
It is engineered for golf and sports simulator enclosures, not repurposed from something else. The specific mill and material grade are listed in the spec table below.
What sizes are available?
Every screen is built to order, sized to your specific opening rather than cut down from a fixed set of stock sizes. Two cassette sizes cover the range.
The 5-inch cassette runs up to 168 inches (14 feet) wide by 120 inches (10 feet) of total drop. The 7-inch cassette runs up to 264 inches (22 feet) wide by 168 inches (14 feet) of total drop. Drop is measured from the top of the cassette box to the floor.
168 in. (14 ft) wide × 120 in. (10 ft) drop
264 in. (22 ft) wide × 168 in. (14 ft) drop
What finishes does the hardware come in?
The cassette box and side tracks are powder-coated aluminium, available in six finishes so the hardware either disappears into the opening or reads as a deliberate line against it.
- Onyx
- Walnut
- Sierra
- Desert Sand
- Alpine
- White
Is it compatible with my launch monitor?
Yes. Screenshot Golf builds the impact screen only. It works alongside any launch monitor, projector, mat, or simulator software you choose. We do not sell simulator packages, and we do not lock you to any hardware.
Specs at a glance
| Specification | 5″ cassette | 7″ cassette |
|---|---|---|
| Size | ||
| Maximum size | 168 in. (14 ft) wide × 120 in. (10 ft) drop | 264 in. (22 ft) wide × 168 in. (14 ft) drop |
| Minimum size Smaller sizes may show more ball bounce-back. | 108 in. (9 ft) wide × 96 in. (8 ft) drop | |
| Drop measurement | Top of the cassette box to the floor | |
| Clearance behind the screen Measured to the wall or door behind the screen. | 18 in. minimum | 24 in. minimum |
| To conceal fully in a drop ceiling Allows for the cassette and hem bar. | 8 in. above the finished surface | 11 in. above the finished surface |
| Construction | ||
| Cassette box | Two-piece aluminium extrusion with cast side covers | |
| Framework finish | Powder-coated aluminium | |
| Roller tube | 70 mm galvanised steel | 85 mm galvanised steel |
| Side tracks Cut to standard length, or optional +6 in. | Aluminium, 1.3 in. wide × 2 in. deep | |
| Track inserts | Rubber winged, black | |
| Hem bar | 1/2 in. steel rod in a 3/4 in. ID nitrate foam wrap | |
| Mounting | Surface mount, or inside mount between walls | |
| Fabric | ||
| Main body | Jason Mills #801 Soft FR, ultra white | |
| Fire rating | Flame retardant (FR) | |
| Maximum single-piece height Above this, a separate top-section fabric is used. | 116 in. | |
| Top section | White or natural acrylic, or black to frame the projected image | |
| Top attachment | Welded spline seated in the roller-tube slot | |
| Bottom attachment | 1.5 in. pocket, triple sewn | |
| Side retention zippers | 4 mm, white, welded and sewn to the main fabric | |
| Motor and control | ||
| Motor | Radio (RTS) tubular motor, UL listed, with obstacle detection | |
| Motor rating | 110 V · 1.3 A | 110 V · 1.6 A |
| Controller Optional wireless wall-mounted switch. | Single-channel remote included | |
| Optional electronics | App control, multi-channel controllers, automation interfaces | |
| Power cord | 10 ft pigtail standard, 24 ft optional | |
| Cord exit Side exit is not recommended for an inside mount. | Top, back, bottom, or side | |
| Motor plug | Exterior rated — fitted at installation, or hard wired | |
| Options | ||
| "L" angle track (0.75 × 1.5 in.) | For inside mount — full drop length, or full drop +6 in. | |
| Fur-out strip (1 × 2 in.) | For surface mount — full drop length, or full drop +6 in. | |
| Production and warranty | ||
| Production | Made to order and assembled in the USA | |
| Lead time | 2 to 3 weeks | |
| Frame and motor warranty Excludes dents, chips, and damage from ball impact. | 5 years | |
| Fabric warranty | 180 days residential · 90 days commercial | |
| Parts and recovers | Available direct from Screenshot Golf | |
| Support | Written instructions, with live help 8–5 ET weekdays | |
| Installation | Professional, through a nationwide dealer network | |
